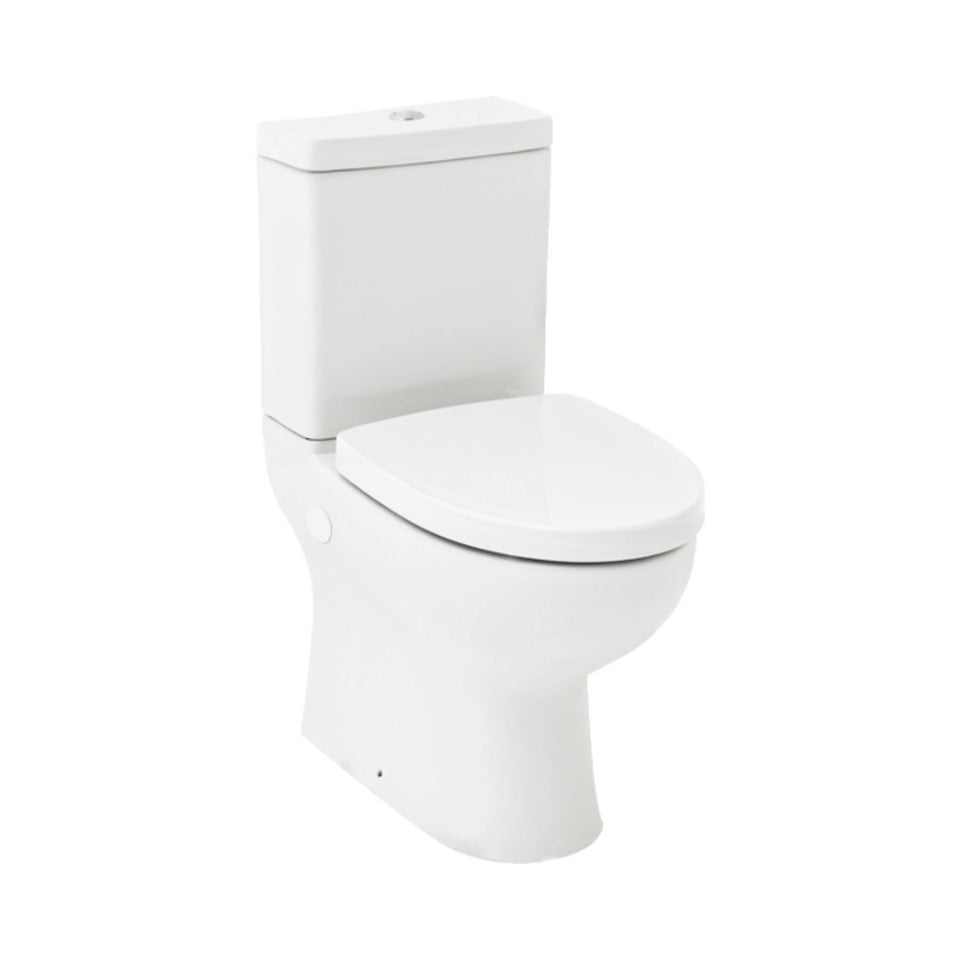

Kohler Dual Side Entry Toilet Suite (77304A-0)

Available for delivery in Auckland only.

Please contact us if you would like this product delivered outside the Auckland area.

Designed for versatility, the Kohler Dual includes more features, now including multiple water feed options making it the perfect choice for both new builds and renovations alike.

Product Features

• Dual flush (4.5/3L)

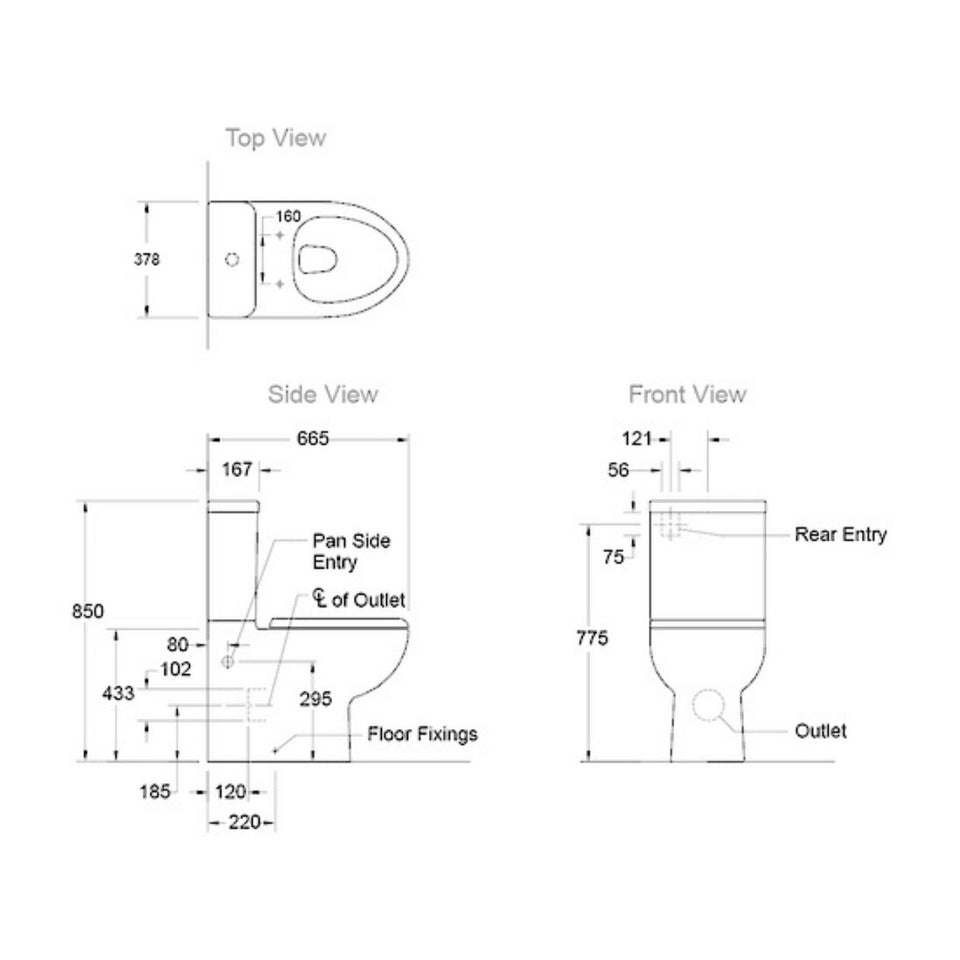

• Water entry: Top left rear entry or right/left pan side entry
• P-trap set out height: 185mm
• S-trap set out: Standard: 90mm - 140mm (with vario pan connector & 20mm offset pan collar - supplied). Optional: 160mm - 230mm (with long adjustable vario pan connector, 98451A-0 - not supplied)
• Box rim
• Vitreous china

Included Components

• Kohler Dual toilet pan
• Kohler Dual cistern 4.5L/3L
• Kohler Dual quiet close, vertical Quick Release toilet seat
• Vario pan connector
• Offset pan collar (20mm)
• Fill valve for rear entry
• Fill valve for pan side entry (supplied with pan)
• Rear entry water supply hose (pan side entry water supply hose not supplied)
• 2 x caps for pan side entry holes
• 1 x hose ring for pan side entry hole (for use with pan side entry setup only)
• Floor fixing bolts and anchors

Installation Instructions

• Water supply pressure range: 20 psi (137 kPa) to 80 psi (551kPa)
• Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector along with the 20mm offset pan collar (supplied)
• Rear entry water supply hose is supplied. Pan side entry water supply hose is not supplied and must be purchased separately
• The installation of a remotely located inlet shut-off valve (not supplied) is required.
