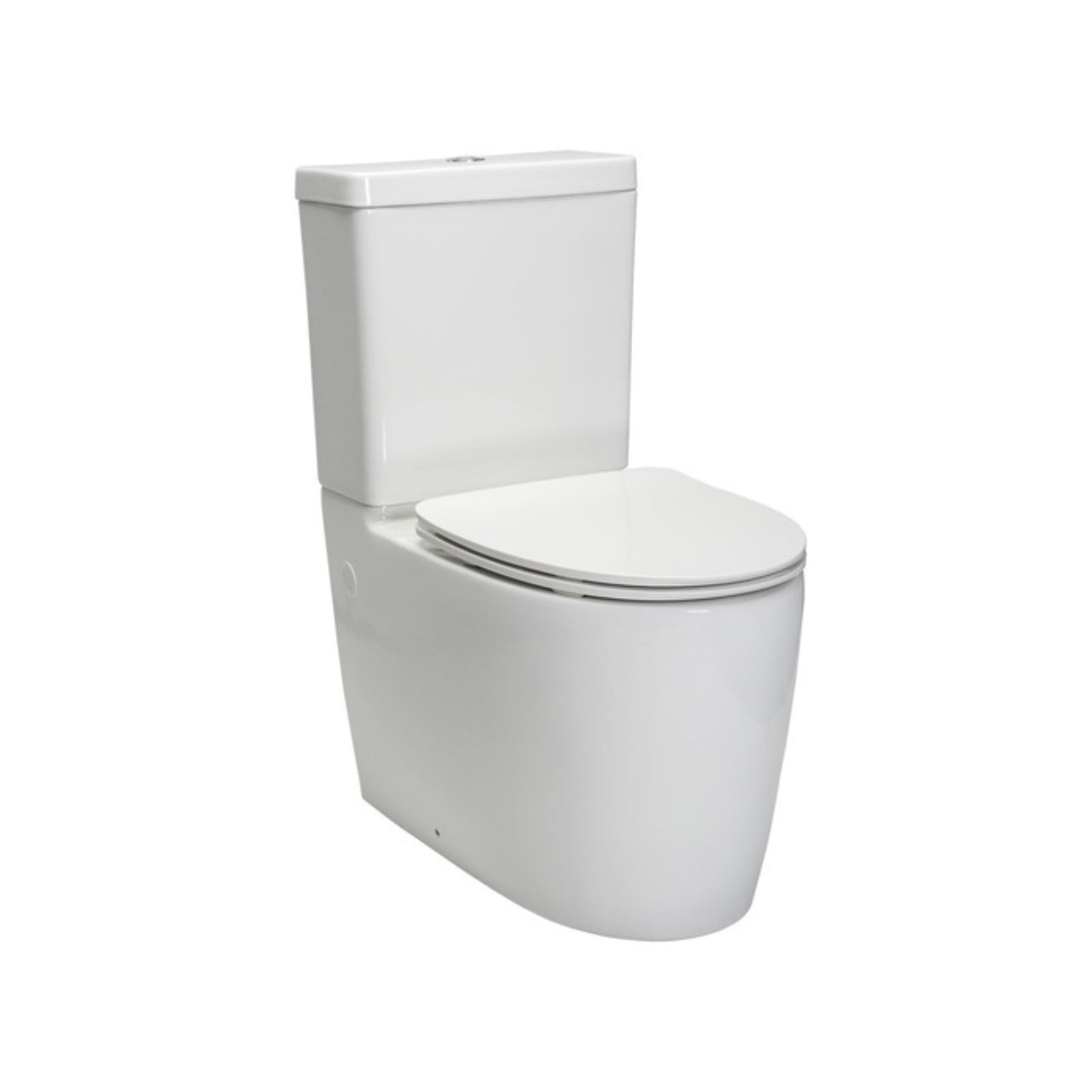

Kohler Grande Back to Wall Toilet Suite

Vendor: Kohler

Type: Toilets

SKU: 76078A-0

$970.00 NZD

$970.00 NZD ~~$1,159.00 NZD~~

Shipping calculated at checkout.

Seats: Standard

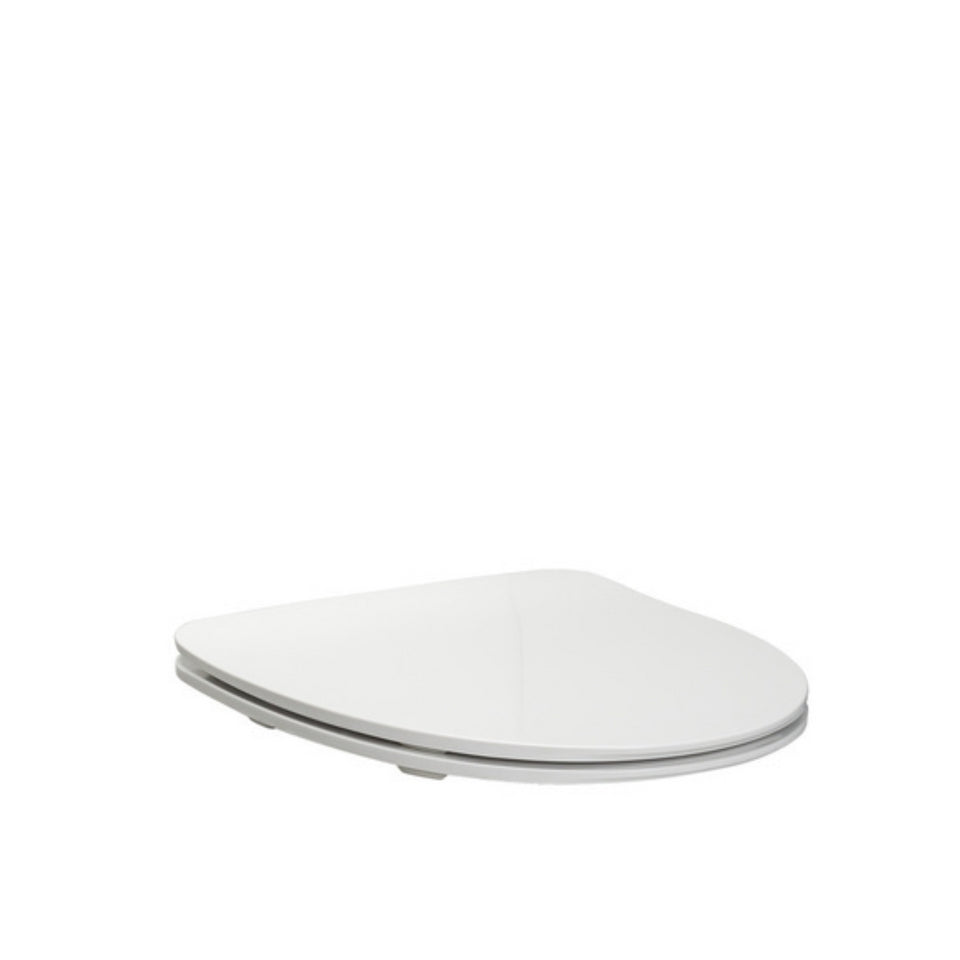

Standard Slim Seat - Top & Side Inlet Elite Seat - Top & Side Inlet

Available in stock

Available for delivery in Auckland only.

Please contact us if you would like this product delivered outside the Auckland area.

Since hygiene and ease of cleaning are major toilet concerns, KOHLER introduces Grande with rim-free technology for guaranteed hygiene and easy, effortless day-to-day care. The secret is an ultra efficient flush system, a special interior pan design that's very smooth and rim-free so that every nook and cranny is accessible. Hygiene Max Rimless Technology. Maximum hygiene, maximum all-out clean. Now available in a wrap, slim or elite seat. Note: The elite seat includes a built-in night light and a scent dispenser.

Click here to view the Grande ultra efficient flush system

Product Features

Dual flush (4.5/3L)
Available with standard, slim or elite seat (see RRP's above)
Elite seat features a built-in night light and scent dispenser
Also with an option of having an Englefield bidet seat (see RRP's above)
Top left rear entry or right/left pan side entry
P-trap set out height: 185mm
S-trap set out: Optional 1 (with Vario 12503A-NA pan connector) : 110 – 140mm; Optional 2 (with Vario 12503A-NA + 20mm offset pan collar 100794) : 90-160mm; Optional 3 (with Vario 77837A-NA long adjustable pan connector) : 170-290mm.
Hygiene Max Rimless pan design
Vitreous china

Included Components

Grande toilet pan
Grande toilet cistern 4.5/3L
Grande Quick Close, VQR (vertical quick release toilet seat)
Vario pan connector
Offset pan collar (20mm)
Fill valve for top left rear entry
Fill valve for pan side entry (supplied with pan)
Top left rear entry water supply hose
2 x caps for pan side entry holes
1 x hose ring for pan side entry hole
Floor fixing kit

Installation Instructions

Water supply pressure range: 20 psi (137 kPa) - 72 psi (500 kPa)
Can be installed as a P-trap using a straight connector (not supplied) or as an S-trap using the vario connector & or pan offset collar (supplied)
Top left rear entry water supply hose is supplied. Pan side entry water supply hose must be purchased separately if required
Supplied hose ring is only required with a pan side entry setup

Technical Information

📄 Specification Sheet

📄 Installation Instructions

📄 Product Information Flyer
